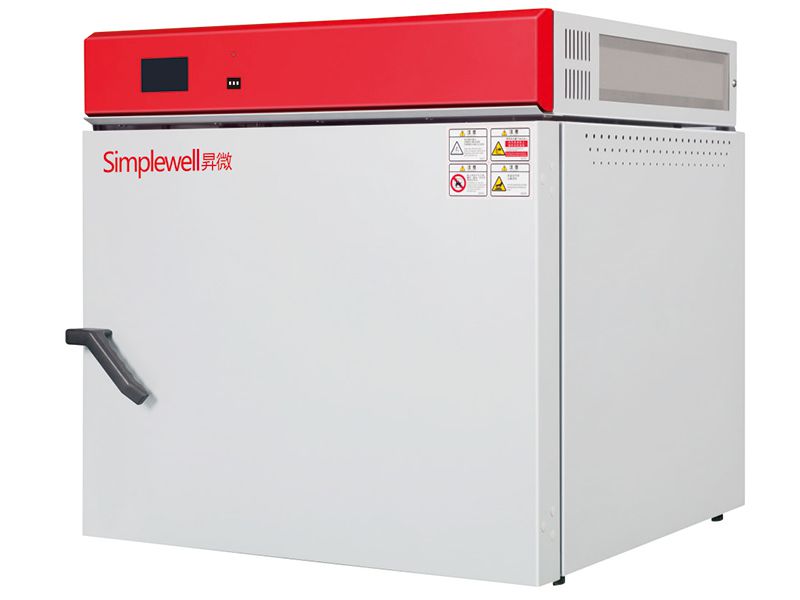

Safe Drying Oven
Safe drying oven is suitable for quality inspection and material screening of electronics, electrical appliances, communication, instruments, vehicles, batteries, medical and aerospace products. Typical application is seen in the materials testing and aging testing of electrical and electronic products and automotive components.
Reference Standards- GBGB/T 30435-2013 Electric gravity convection and forced ventilation ovens
- DIN 12880:2007 Electrical Laboratory Devices - Heating Ovens and Incubators
- GB/T2423.2-2008 Environmental Testing for Electric and Electronic Products - Part 2: Test B: High Temperature Test Method
Features
- A fresh air monitoring system with auto-off function, a heating device and a replaceable fresh air filter. Cartridge (M6 level, according to DIN EN 779: 2012/ISO 16890)
- Circular arc in the chamber designed to prevent accumulation and settlement without dead angle
- Dedicated touch screen temperature controller
- Small temperature fluctuation and deviation. A set of independent settable over temperature protector; and the controller also has a set of temperature protector independent of the control channel sensor; dual protection to ensure the safety of the test product
| Model | | | | |
| Volume | 56 | 115 | 260 | |
| Internal Dimensions(mm) | W | 500 | 600 | 760 |
| H | 335 | 435 | 585 | |
| D | 335 | 435 | 585 | |
| External dimensions(mm) | W | 740 | 840 | 1000 |
| H | 830 | 880 | 1030 | |
| D | 750 | 850 | 1000 | |
| Weight (KG) | 75KG | 125KG | 165KG | |
| Power supply | AC220V 50HZ | |||
| Temp. Range | RT+10℃-300℃ | |||
| Input power | 1.1KW | 2.2KW | 3.3KW | |
| Leakage switch | 16A | 20A | 25A | |
| Temp. deviation | 150℃±0.5℃ | |||
| Temp. fluctuation | ±0.3℃ | |||
| Noise | ≤65dB | |||
