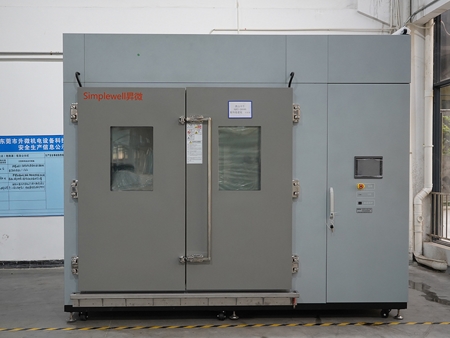

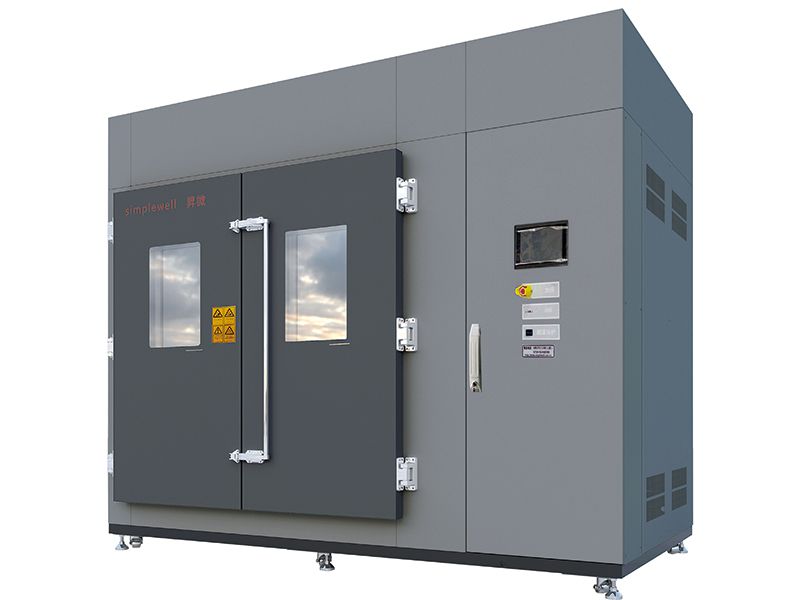

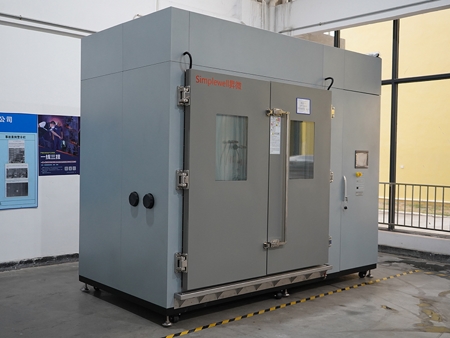

UV Aging Test Chamber
UV aging test chamber is suitable for quality inspection and material screening of electronics, electrical appliances, communication, instruments, vehicles, plastic products, metals, building materials, and aerospace to name a few. This test chamber adopts fluorescent ultraviolet lamps with optimal UV spectrum simulation in sunlight, temperature control, humidity control and other devices to simulate sunlight that causes discoloration, brightness, decrease in intensity, cracking, peeling, powdering and oxidation, high temperature, high humidity, condensation, or dark rain cycle while diminishing the light resistance or moisture resistance of tested material through the synergy between UV light and moisture. It is therefore widely used to evaluate the weather resistance of materials.
Reference Standards
- GB/T10586-2006 Specifications for damp heat testing chambers
- GB/T10589-2008 Specifications for low temperature test chambers
- GB/T10592-2008 Specifications for low/high temperature test chambers
- GB/T2423.1-2008 Environmental testing for electric and electronic products - Part 2: Test methods - Tests A: Cold
- GB/T2423.3-2016 Environmental Testing--Part 2: Testing Method--Test Cab: Damp Heat, Steady State
- GB/T 2423.22-2012 Environmental testing--Part 2: Test methods--Test N: Change of temperature
- GB/T14522-2008 Artificial Weathering Test Method for Plastics, Coating and Rubber Materials Used for Machinery Industrial Products--Fluorescent UV Lamps
- GB/T16585-1996 Rubber, vulcanized--Test method of resistance to artificial weathering (Fluorescent UV lamp)
- GB/T 16422.3 - Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps
- PLC controlled system, enabling precise control of temperature, humidity, irradiation strength to improve accuracy and speed up testing process

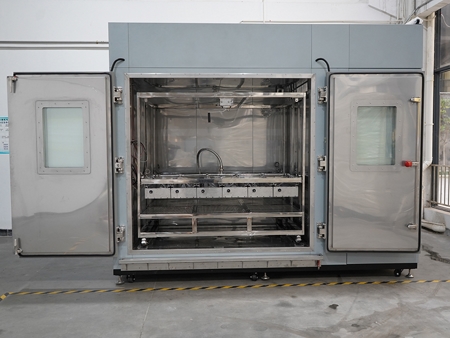

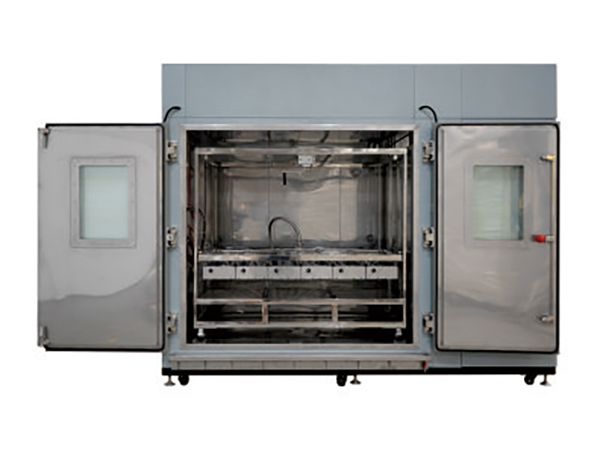

- Sample stand with adjustable height
- Blackboard temperature sensors for accurate temperature measurement
- External humidification system, achieving automatic precise control of humidity and automatic water supply
- Mobile lamp rack for easier maintenance
Temperature and humidity
- Temp. range: 10℃～70℃ (Full-course controllable; Analytic accuracy 0.01 ° C)
- Humidity range: 90-98%RH (Temp. Range: 20℃-70℃)
- Temp. uniformity: ≤±2.0℃
- Temp. fluctuation: ≤0.5℃
- Humidity uniformity: ≤±2%

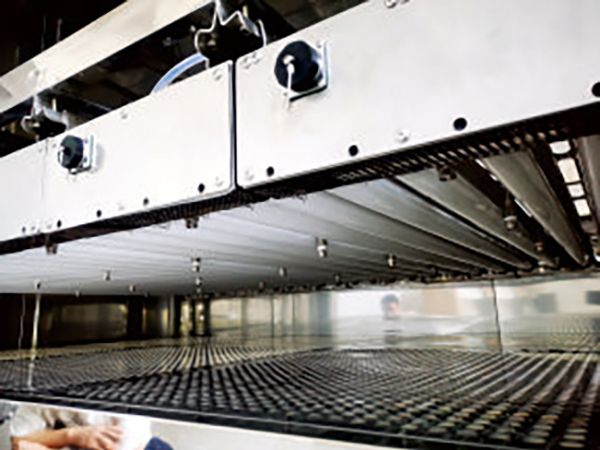

- Light source: UVA-340, UVA-351, UVB-313 arranged at the top of the device
- Irradiation: 0～1w/m2 control point; Control accuracy ± 0.01W/m2, with high accuracy ultraviolet irradiation sensor
- UV exposure, condensation time: individually adjustable
- Irradiated blackboard temperature: 50℃~70℃
- The center distance of the lamp: 70mm
- The closest parallel distance of the specimen from the lamp surface: 100mm
- External humidification system, automatic precise control of humidity and automatic water supply
- Fully automatic sprinkler system with tapered sprinklers sprayed evenly on the surface of the specimen
