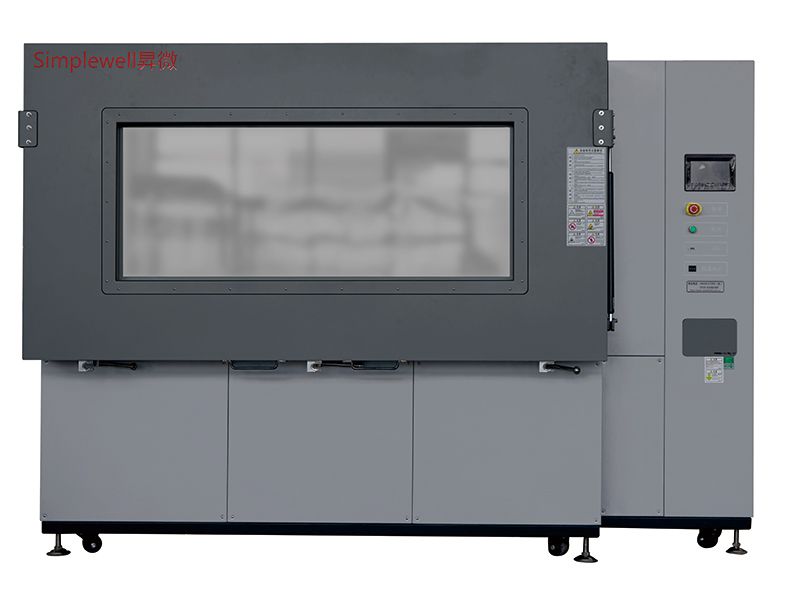

Refrigerant Leak Test Chamber
Refrigerant leak test chamber can provide specified temperatures to test the amount of refrigerant leakage for a variety of products with refrigerant systems.
Reference StandardsGJB899A-2009 Reliability testing for qualification and production acceptance
GJB1032-90 Environmental stress screening process for electronic products
Features
- Stainless steel inner chamber
- Special sealing structure: up and over doors
- The key parts and components are all imported products or wholly owned domestic factory products of well-known brand to ensure quality
| Model | FV-3000 |
| Ambient temperature | 10-35℃ |
| Ambient humidity | ≤85％R.H |
| Environmental cleanliness requirements | No source of pollution in surrounding environment |
| Dimension | W2000*D1500*H1000 |
| Temp. range | 23-25℃ |
| Noise | 5m from the device, ≤65dBA |
| Temp. fluctuation | ±0.3℃ |
| Temp. deviation | ±0.5℃ |
| Power supply | AC 380V/50HZ |
| Power | 11KW |
