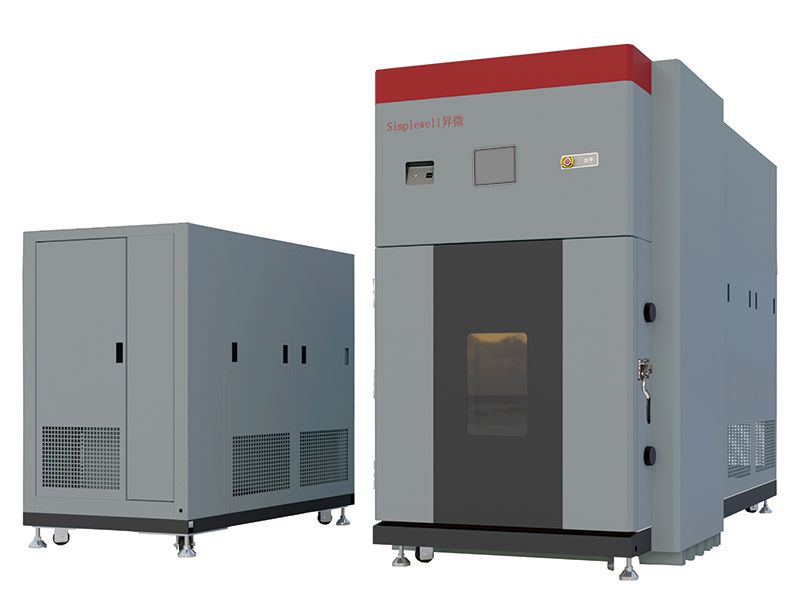

Battery Crush & Nail Penetration Test Chamber

Request a Quote

Battery crush and nail penetration test chamber simulates the crushing and nail penetration of various types of batteries while in use and present the different conditions and safety performance of batteries under such circumstances.

Reference Standards

GB11158, GB10589, GB10592, GB10586, GB/T2423, IEC 60068-3-5, IEC 60068-3-6, GJB150, GB/T 31484, GB/T 31485, GB/T 31467, GB/T31486, GB/T5170.2, GB/T5170.5, UN38.3, GJB4477, QC/T743, UL1642, GB/Z18333.1, GB/T2947.3, GB/T 18384.1

• The advantages of high and low temperature (wet heat) test bay are maintained;
• Equipped with anti-explosion relief device, door anti-explosion device, observation window protection device;
• Equipped with equipment for detecting hazardous gases, smoke sensing devices;
• Equipped with automatic fire suppression, cooling, exhaust;
• Options include heptafluoropropane, high pressure fine water mist, spray, carbon dioxide, infrared imaging, video and more
• Temp. range: －40℃～＋150℃ (Optional to 180 ° C)
• A temperature and humidity controller with independent intellectual property rights, PLC and industrial human-machine interface.
• Energy-saving control system, saving more than 50% energy. Related technology passed China CQC energy-saving product certification.
• A complete display of the test process to facilitate understanding of each test process;
• High precision displacement sensor for high sampling rate and accuracy;
• Temperature changes and test curves of the battery can be monitored in real time;
• Full display of pressure values and pressure curves and deformation process curves for easy understanding of each test process;
• Complete display of sample voltage values and voltage curves;
• Crush force, and retention time are controllable;
• An integration of 3 tests, powerful function;
