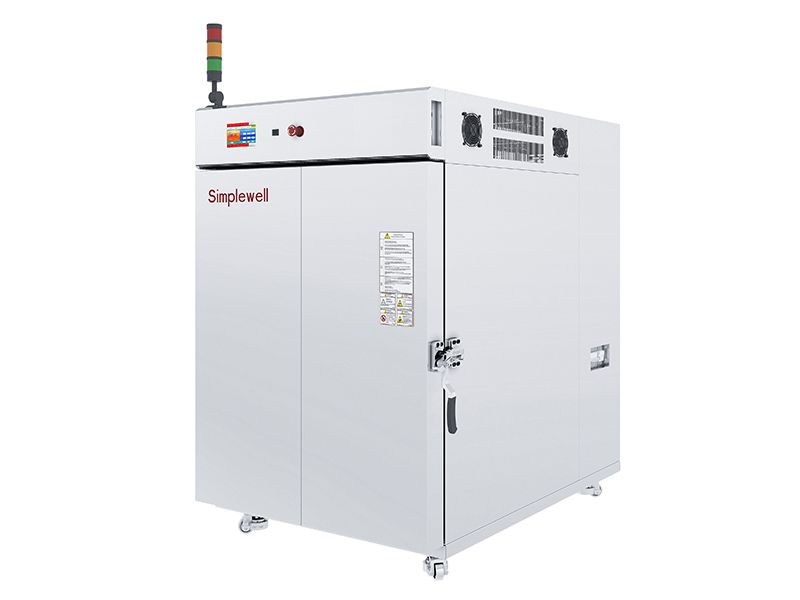

Dust-free High Temperature Chamber
A dust-free high temperature chamber is a kind of thermal chamber that can inhibit the generation of particles. It is mainly used for the constant temperature tests of semiconductors, liquid crystals, electronic products and precision appliance in a dust-free environment.
Reference Standards- GB/T2423.2-2008 Environmental Testing for Electric and Electronic Products - Part 2: Test B: High Temperature Test Method
- GJB150.3A-2009 Military Equipment Laboratory Environment Test Method Part 3: High Temperature Test
- IEC68-2-2 Test B: Dry heat
- GB/T 25915.1-2010 Cleanrooms and Related Controlled Environments Part 1: Air Cleanliness levels
Features
- High temperature resistant high efficiency filter, keeping the internal cleanliness level of the high temperature chamber (in a class 10000 cleanroom) at grade 100 through vertical circulation.
- Circular arc in the chamber designed to prevent accumulation and settlement without dead angle.
- The inner chamber adopts jacket design, ensuring the cleanliness of the inner chamber during cooling.
- Using air to achieve rapid cooling, saving a lot of nitrogen compared with traditional models.
- Special temperature controller.
- Small temperature fluctuation and deviation.
| Model | | | | ||||
| Effective Volume (L) | 91 | 216 | 512 | ||||
| Temp. Range (℃) | Min | RT+30 | |||||
| Max | 250 | 350 | 250 | 350 | 250 | 350 | |
| Temp. uniformity (℃) | ≤3.0 | ||||||
| Temp. fluctuation (℃) | ≤ ±0.5 | ||||||
| Temp. deviation (℃) | ±1.5 | ||||||
| Cleanliness level | Class 100 (environment cleanliness level class 10000) | ||||||
| Cooling rate (℃/min) | 250℃ series, no load, from +225 ℃ to +60 ℃, ≤100min | ||||||
| 350℃ series, no load, from +350 ℃ to +60 ℃, ≤180min | |||||||
| Heating rate (℃/min) | no load, from RT+15 ℃ to +200 ℃, ≤60min | ||||||
| Internal Dimensions(mm) | W | 450 | 600 | 800 | |||
| H | 450 | 600 | 800 | ||||
| D | 450 | 600 | 800 | ||||
| External dimensions(mm) | W | 950 | 1050 | 1100 | 1200 | 1300 | 1400 |
| H | 1560 | 1660 | 1710 | 1810 | 1910 | 2010 | |
| D | 1450 | 1550 | 1600 | 1700 | 1800 | 1900 | |
| Maximum power (not the sum of all power) (KW) | 2.5 | 3.5 | 4.5 | 5.5 | 7.5 | 8.5 | |
| Leakage switch 4P (A) | 10 | 10 | 10 | 16 | 16 | 16 | |
| Noise (dB) | Less than 65 dB (measured 500 mm from the display screen) | ||||||
