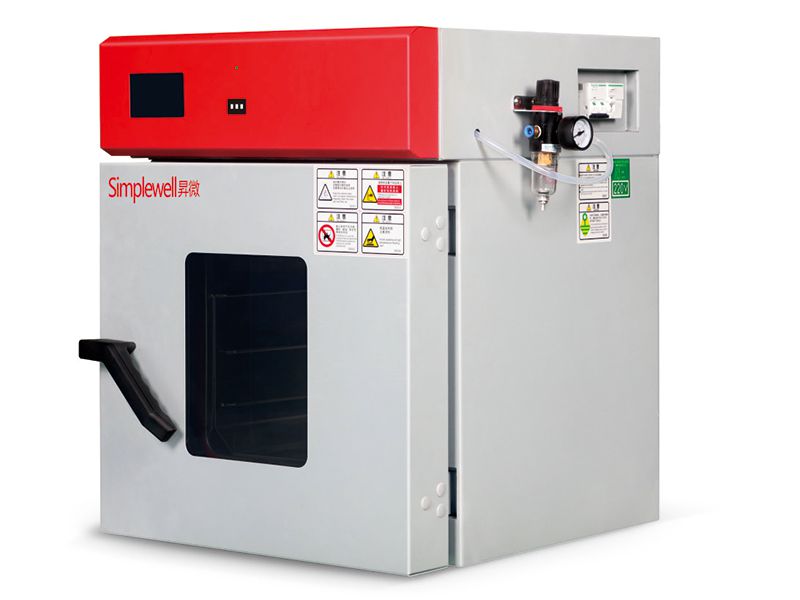

Vacuum Drying Oven
Vacuum drying oven can perform routine drying and aging test up to 200 ° C. This oven offers efficient heating and uniform temperatures through forced convection and an air jacket design. The vacuum drying oven Simplewell designed can achieve a temperature deviation of ±2.0℃ (100℃) or higher. Intelligent control system enables the economical and energy-efficient operation of the oven.
This drying oven is suitable for the quality inspection, material screening, aging and drying of electronics, electrical appliances, communication, instruments, vehicles, battery packs, medical, and aerospace to name a few.
- GB/T29251-2012 Vacuum ovens
- JB/T9505 Vacuum drying chamber
Specifications
| Model | | | | |
| Internal dimensions (L) | ||||
| W | mm/inch | 285/11.22 | 385/15.16 | 500/19.69 |
| H | mm/inch | 285/11.22 | 385/15.16 | 500/19.69 |
| D | mm/inch | 295/11.61 | 330/15.16 | 460/18.11 |
| External dimensions (including the handle) | ||||
| W | mm/inch | 515/20.27 | 621/24.45 | 730/28.74 |
| H | mm/inch | 660/25.98 | 770/30.32 | 880/34.65 |
| D | mm/inch | 660/25.98 | 690/27.17 | 820/32.28 |
| Input power (KW) | 1KW | 1.5KW | 2KW | |
| Power supply (V) | AC220V 50HZ | |||
| Temp. range | RT+15℃-200℃ | |||
| Vacuum degree | atmospheric pressure-1KPa | |||
| Stability | ± 0.5℃ | |||
| Pressure relief | From atmospheric pressure to -15KPa ≤30min | |||
| Heating rate | RT+15℃-150℃, around 1℃/min | |||
| Recovery | ≤10min | |||
| Noise | ≤60DB | |||
- A fuzzy adaptive PID control method, enabling more accurate control under different working conditions
- Small temperature deviation and good uniformity. Heated air is fully mixed by a fan to produce forced air circulation inside the chamber, ensuring an even temperature distribution.
- USB interface for easy data recording
- Cloud control (mobile and device linkage)
- A set of independent settable over temperature protector; and the controller also has a set of temperature protector independent of the control channel sensor; dual protection to ensure the safety of the test product
