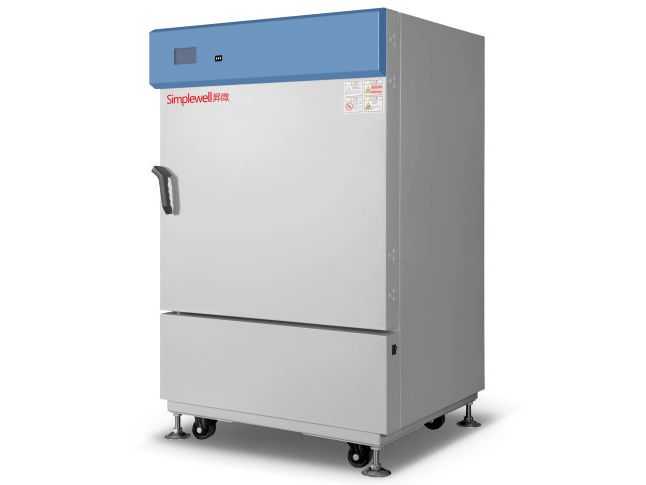

Growth Chamber
Growth chamber are suitable for agricultural, ecological, forest, breeding, and genetic researches. These chambers are normally used for plant cultivation, seed germination and the studying of seedling, tobacco, animals and insects.
Reference Standards- JB/T 9512-1999 Climate environmental testing equipment and cabinet-determination of sound power level of noise emitted
- JB/T 6823-1993 Specification for artificial bioclimatic climate chamber
Features
- Dedicated temperature, humidity and light controller with touch screen
- A fuzzy adaptive PID control method, saving energy.
- Two mixing blades for uniform temperature and humidity.
- External insulation door and glass door, double sealing. Special custom motor.
- Circular arc in the chamber designed to prevent accumulation and settlement without dead angle.
| Model | | | |
| Power supply | AC220V 50HZ | ||
| Temp. Range | 0℃-70℃ (no light)/10℃-60℃ (with light) | ||
| Humidity range | 10%RH-80%RH | ||
| Light intensity | 0-9000LX | ||
| Temp. deviation (no light) | 0.5 | 0.5 | 0.5 |
| Temp. deviation (with light) | 0.5 | 1.5 | 1.0 |
| Temp. fluctuation (no light) | 0.1 | 0.1 | 0.1 |
| Temp. fluctuation (with light) | 0.1 | 0.2 | 0.1 |
| Gross weight (kg) | 202 | 263 | 385 |
| Input power | 1350W | 2500W | 3500W |
| Internal Dimensions mm (W x H x D) | 560x400x480 | 650x490x780 | 970x580x1250 |
| External dimensions mm (W x H x D) | 840x710x1160 | 930x800x1460 | 1250x890x1920 |
| Noise (dB) | ≤65 | ||
