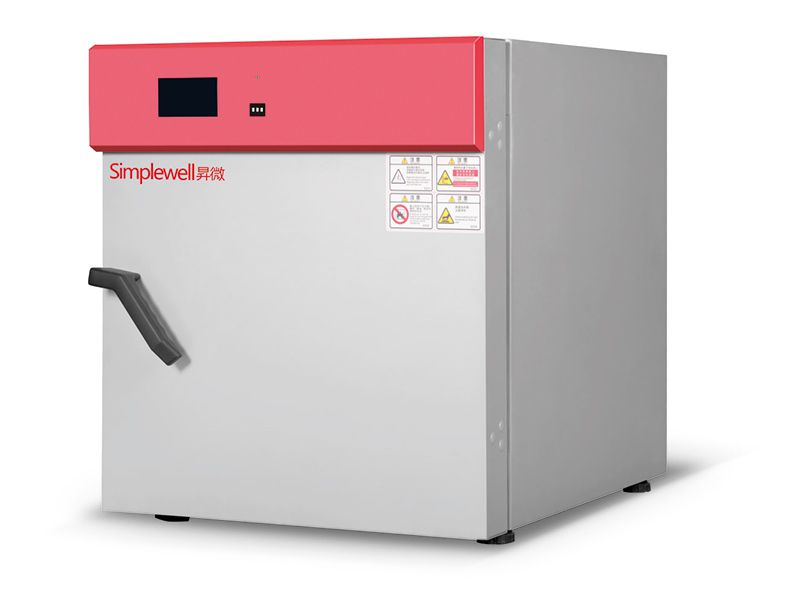

Natural Convection Drying Oven
SFR series natural convection drying oven is designed to conduct various tasks including drying, high temperature aging, constant temperature testing, heating, heat preservation and sterilization. This natural convection drying oven can be extensively used in aerospace, electronics, home appliances, food processing, scientific research and more market sectors.
Key Features
- Temperature range: RT+15℃ to 200℃, 300℃
- Able to save up to 30% more energy than conventional drying oven available on the market
- Controller is customizable
- Natural convection (free convection)
- Color touch screen with human-machine interaction in English and Chinese, easy and simple to use
- Automatic control of exhaust valve
- 2 chrome plated shelves
- Audible alarm
- Ergonomic design of door handle
- USB port for data recording
- Multi-stage PID control coupled with fuzzy logic control can be adopted according to different working conditions, to realize accurate and reliable control
- Intelligent control system keeps good ventilation conditions by changing the status of ventilation openings, aiming at saving energy
- The natural convection drying oven is featured by small temperature deviation and good uniformity. The heated air enters chamber after passing through the fan, so that the heated air is evenly distributed inside the chamber, resulting in uniform temperatures.
- USB port for data recording with ease
- Cloud-based control via smartphone
-
Regulations
JJF1101-2019 Calibration Specification for Environmental Testing Equipment for Temperature and Humidity Parameters -
Reference Standards
GB/T 30435-2013 Electric Gravity Convection and Forced Ventilation Ovens
GB/T 2423.2-2008 Environmental Testing for Electric and Electronic Products--Part 2: Test Methods--Tests B: Dry Heat
DIN 12880(2007-05-00)
| Model | | | | | |
| Internal Dimensions | |||||
| Width | mm/inch | 360/14.2 | 560/22 | 610/24 | 960/37.8 |
| Height | mm/inch | 420/16.5 | 600/23.6 | 760/29.9 | 1280/50.4 |
| Depth | mm/inch | 380/15 | 530/20.9 | 550/21.6 | 605/23.8 |
| Volume | L | 57 | 178 | 255 | 743 |
| External Dimensions | |||||
| Width | mm/inch | 620/24.4 | 820/32.3 | 870/34.3 | 1200/47.2 |
| Height | mm/inch | 680/26.8 | 860/33.8 | 1020/40.1 | 1620/63.8 |
| Depth | mm/inch | 786.5/31 | 937/36.9 | 957/37.7 | 935/36.8 |
| Input power | kW | 1 | 1.3 | 2.0 | 2.6 |
| Voltage | AC220V 50HZ | ||||
| Temperature range | RT+15℃-300℃ | ||||
| Weight | KG | 80 | 110 | 142 | 220 |
| Noise level | ≤60DB | ||||
